Air Quality Monitoring Board/display
You are here:
Air Quality Monitoring Board/display

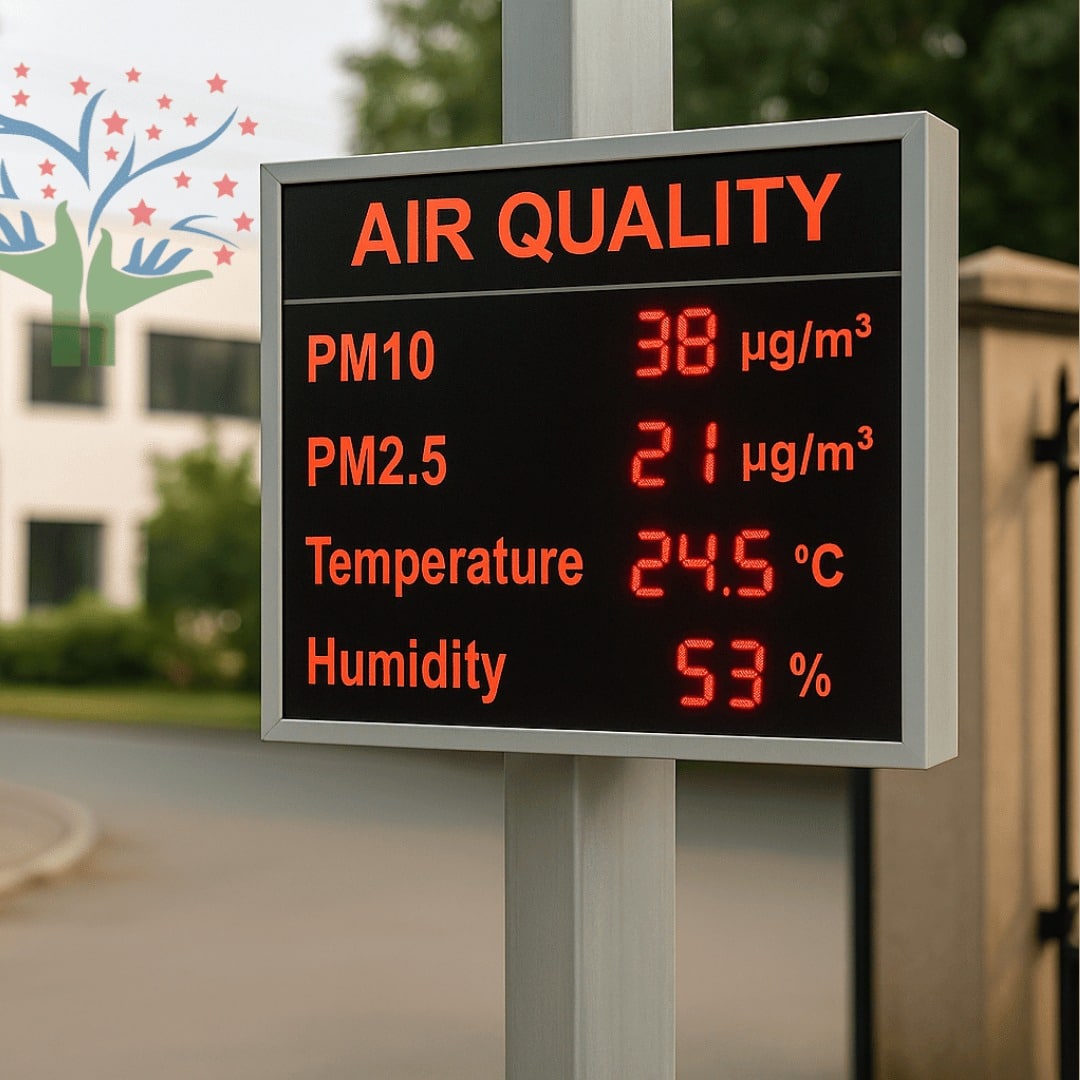

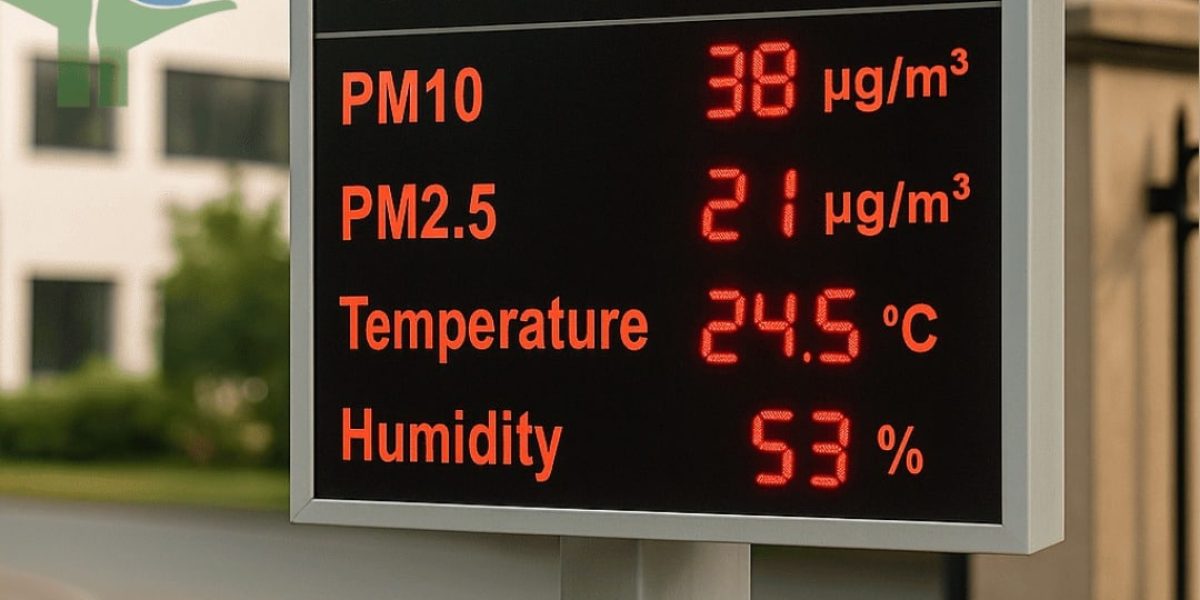

AdrTech India’s outdoor LED air quality display boards show real-time pollution data — AQI, PM2.5, PM10, CO, SOx, NOx, temperature, and humidity — in large, high-brightness digits readable from a distance, at factory gates, construction site entrances, highways, and public spaces across India. Whether you need to meet CPCB compliance requirements at an industrial facility in Pune, fulfil a Bombay High Court-mandated AQI board order at a Mumbai construction site, or contribute to a smart city monitoring network in Chandigarh or Hyderabad, our systems are configured to connect directly to your sensor station and update automatically — 24 hours a day, every day. No manual intervention. No outdated readings. No compliance risk.
- Displays PM2.5, PM10, CO, SOx, NOx, AQI & More
- Ultra-Bright LED — Up to 5500 Nits, Sunlight Readable
- IP65 Rated — Weatherproof for Outdoor 24/7 Operation
- CPCB / SPCB / MPCB Compliance Ready
- Wi-Fi, 4G/GSM, Ethernet & RS485 Connectivity
- PAN India Supply, Installation & AMC
Product Description
LED brightness — visible under direct Indian sunlight
0
K+Nits
Air quality parameters displayable simultaneously
0
K
Wide viewing angle for large public spaces
"
Rated — dust-sealed and waterproof for all-weather operation
IP
0
About This Product
What Is It?
An air quality display board is a large-format outdoor LED display installed at a fixed public or industrial location to show live environmental data — primarily the Air Quality Index (AQI) and the individual pollutant concentrations that contribute to it, such as PM2.5, PM10, carbon monoxide (CO), sulphur dioxide (SOx), and nitrogen dioxide (NOx), along with ambient temperature and humidity. The display receives data automatically from a connected air quality monitoring sensor or an existing Continuous Ambient Air Quality Monitoring Station (CAAQMS), updates the readings in real time, and presents them in large, clearly readable digits designed to be seen from across a road, a factory gate, or a public plaza. For industries under CPCB or State Pollution Control Board (SPCB) compliance obligations, these boards have moved from optional to mandatory — and for smart city planners, infrastructure developers, and real estate projects across Delhi, Mumbai, Bengaluru, and Hyderabad, they are fast becoming a standard fixture.
Product Specifications
Technical Specifications
Everything you need to know before placing your order. All units are thoroughly tested before dispatch.
| Specification | Details |
| Display Technology | Outdoor SMD / DIP LED, P10 Pixel Pitch (standard); P8/P6 available |
| Screen Sizes | 4×2 ft, 4×3 ft, 6×4 ft, 8×4 ft, 8×5 ft; custom sizes on request |
| Brightness | 5000–5500 nits (sunlight readable); auto-dimming optional |
| Viewing Angle | 178° horizontal and vertical |
| Ingress Protection | IP65 — fully dust-sealed and waterproof |
| Parameters Displayed | AQI, PM2.5, PM10, CO, SOx, NOx, Temperature, Humidity, Date & Time (customisable) |
| Data Connectivity | Ethernet (RJ45), Wi-Fi, 4G/GSM SIM, RS485, RS232 |
| Data Source Compatibility | CAAQMS / local sensor node / cloud server / SCADA / PLC |
| Operating Temperature | -10°C to +60°C |
| Enclosure Material | Powder-coated MS / Aluminium; corrosion-resistant finish |
| Power Supply | 220V AC, 50Hz; typical consumption 150W–600W (size-dependent) |
| Warranty | 1 Year On-Site; LED lamp life 10+ years |
Key Features
Engineered for Mission-Critical Environments
Every specification of our Data Wall Display is chosen for environments where failure is not an option — from the control rooms of power utilities to the NOC centers of national infrastructure operators.
✋
💡
🛡️
🔌
🎨
💼
Applications
Where Are Data Wall Displays Used in India?
Demand for Data Wall Display systems in India is accelerating as smart city programs expand, infrastructure monitoring becomes centralized, and enterprises invest in real-time operational visibility.
Construction & Infrastructure Sites
Under Bombay High Court directives enforced since January 2025, all construction and infrastructure development projects in the Mumbai Metropolitan Region must install sensor-based AQI display boards at site entrances. Similar mandates are active under DPCC in Delhi and are expanding to other cities. AdrTech India supplies turnkey-compliant AQI boards for real estate developers, road contractors, and metro rail project sites across India, including the necessary sensor integration and online data reporting setup.
Industrial Facilities — Factory Gate Compliance
CPCB has mandated real-time environmental data display at factory gate entrances for industries under the Red and Orange category — including cement, steel, power, chemicals, textiles, and pharmaceuticals. Our display boards connect directly to your existing CAAQMS or stack emission monitoring station and present the required parameters in a format acceptable to Factory Inspectorates and pollution control board auditors in states like Gujarat, Maharashtra, Uttar Pradesh, and Tamil Nadu.
Smart City & Urban Monitoring Networks
Municipal corporations and Smart City SPVs across Chandigarh, Pune, Surat, Lucknow, and Bhopal deploy AQI display boards at key public locations — traffic junctions, parks, market areas, and transit hubs — as part of citizen-facing air quality communication infrastructure. AdrTech India supplies multi-point network installations where all boards receive data from a central cloud server and can be managed and updated simultaneously from the city's control room.
Highway & Toll Plaza Installations
NHAI and state highway authorities install air quality monitoring boards at toll plazas and highway rest stops to communicate ambient air conditions to motorists, particularly in high-pollution corridors through the Delhi-Meerut Expressway, Mumbai-Pune Expressway, and Yamuna Expressway zones. These installations require particularly high brightness (5000+ nits) and wide viewing angles to be readable from moving vehicles.
Educational Institutions & Hospitals
IITs, central universities, and large hospital complexes in Delhi, Bengaluru, and Hyderabad install AQI display boards at campus entrances to inform students, staff, and visitors of real-time air quality — supporting decisions about outdoor activity, ventilation management, and patient scheduling in respiratory care departments. These installations typically use smaller, aesthetically integrated board formats with moderate brightness for campus environments.
Residential Townships & Real Estate Projects
Large residential township developers in Delhi NCR, Pune, and Hyderabad install air quality display boards at society gates as a premium amenity and a visible demonstration of environmental commitment to residents. In cities where air quality is a top concern for homebuyers — particularly in NCR and Pune — a live AQI board at the project entrance has become a meaningful differentiator for developers targeting health-conscious buyers.
Business Benefits
Why Organizations Choose a Data Wall Display
A data wall is not just a display upgrade — it is an operational infrastructure investment that changes how your team perceives, processes, and acts on information.
📈
🤝
🖨️
🌐
🏆
🔧
Business Benefits
Common Questions About Data Wall Displays
Answers written from real buyer conversations — the questions our project team gets asked most before and during procurement.
An air quality display board is a large outdoor LED screen that shows real-time pollution data — including AQI, PM2.5, PM10, CO, and other parameters — at a fixed public or industrial location, updated automatically from a connected air quality sensor or monitoring station. It works by receiving data from a local sensor node or CAAQMS station via a wired or wireless connection (Ethernet, Wi-Fi, or 4G), processing it through an onboard controller, and displaying the current readings on the LED panel continuously, 24 hours a day. The display refreshes automatically at set intervals — typically every few minutes — ensuring the data shown always reflects current ambient conditions.
Air quality display board prices in India vary significantly depending on size, brightness, number of parameters, connectivity type, and whether a sensor node is included. Basic indoor or small outdoor AQI display units start from around ₹15,000–₹46,000. Standard outdoor compliance boards in the 4×2 ft to 6×4 ft range with full CPCB-compliant parameter sets, IP65 enclosure, and 4G connectivity typically range from ₹50,000 to ₹1,50,000. Large-format smart city installations or customised multi-parameter boards with structural mounting can go higher. AdrTech India recommends a site consultation before pricing — please contact us using the form below for a specific quote.
Yes, in many cases. CPCB has mandated real-time environmental data display at the entrance gates of Red and Orange category industries across India. Under a Bombay High Court directive enforced from January 2025, all construction and infrastructure development sites in the Mumbai Metropolitan Region must install sensor-based AQI display boards — a ruling being mirrored in Delhi under DPCC and CAQM guidelines. For construction sites above 20,000 sq.m, AQI boards are a standard compliance condition under most Environmental Clearances. Non-compliance can attract fines up to ₹2 lakh per violation and stop-work orders.
A standard outdoor air quality monitoring board can display AQI (calculated index), PM2.5, PM10, Carbon Monoxide (CO), Sulphur Dioxide (SOx), Nitrogen Dioxide (NOx), Ozone (O₃), ambient temperature, relative humidity, and current date and time. Most boards also support a scrolling text zone for public messages or institutional branding. AdrTech India configures the parameter layout specifically for your application — a construction site board may show PM10 and PM2.5 prominently, while an industrial facility board may prioritise SOx and NOx alongside AQI, depending on the sector and applicable SPCB requirements.
Yes. AdrTech India’s air quality display boards are compatible with data from existing CAAQMS stations, local ambient sensor nodes, cloud-based monitoring platforms, and SCADA/PLC systems via standard communication protocols including RS485, RS232, Ethernet, and Modbus. If you already have a monitoring station installed at your site, our team will assess the data output format and configure the display board to receive and present it correctly — without requiring you to replace your existing sensor infrastructure.
Yes. Our outdoor boards are designed specifically for Indian climate conditions — rated IP65 for complete dust and water resistance, operational from -10°C to +60°C, and built with corrosion-resistant powder-coated steel enclosures that withstand coastal humidity (Chennai, Mumbai), desert dust (Rajasthan, Gujarat), and heavy monsoon rainfall (Kerala, West Bengal). LED modules are rated for 10+ years of continuous outdoor operation, and brightness levels of up to 5500 nits ensure visibility in direct sunlight — including the intense afternoon light conditions of Indian summers.
Yes. AdrTech India provides end-to-end on-site installation across PAN India — including Delhi NCR, Mumbai, Pune, Bengaluru, Chennai, Hyderabad, Ahmedabad, Chandigarh, Bhubaneswar, and all major industrial cluster cities. Our certified engineers handle structural mounting, electrical connection, sensor integration, network configuration, and commissioning. Post-installation, we offer a 1-year on-site warranty and Annual Maintenance Contracts (AMC) with defined response SLAs, including remote diagnostics and on-site support for hardware failures.
Yes. AdrTech India’s boards support multiple connectivity modes — Ethernet, Wi-Fi, 4G/GSM SIM, and RS485 serial — allowing them to function in locations with no fixed internet infrastructure. A board connected via a 4G SIM card will update live data as long as cellular network coverage is available — which covers virtually all industrial and construction zones across India. For fully isolated environments, the board can receive data from a directly wired local sensor or a local network server, completely independent of internet access.
