Curved Led Display

The AdrTech India Curved LED Display is a bespoke, high-impact LED display system engineered in a concave or convex curved form factor that creates immersive visual environments impossible to achieve with flat display technology. Combining flexible or purpose-built curved LED panel modules with precision aluminium mounting structures fabricated to exact curvature specifications, the Curved LED Display wraps the viewer in a panoramic visual field — delivering the depth, scale, and presence of a cinema or simulation environment in corporate lobbies, retail flagship spaces, hospitality venues, broadcast studios, exhibition centres, and entertainment destinations. Designed and engineered by AdrTech India for permanent and semi-permanent curved display installations across Delhi, Mumbai, Bengaluru, Hyderabad, and Chennai.

Purpose-Built or Flexible LED Panels — Achieves Any Curve Radius from 1m to Flat Transition
Concave & Convex Configurations — Wraps Around or Faces Out to the Viewer
Seamless Panel Joins Along the Curve — No Visible Gap or Step Between Modules
High Refresh Rate (3840Hz+) — Camera-Friendly for Broadcast & Event Photography
Custom Structural Engineering — Mounting Structure Designed to Your Space and Curvature
PAN India Design, Supply, Installation & 1-Year On-Site Warranty

Category Video Wall Solutions

Product Description

Full HD LED touch display — crisp and responsive

0 "

Amplifier output — crystal clear audio for large halls

0 W

Mic system — gooseneck, wireless handheld & collar mic

-in-1

Processor options — configured as per your requirement

0 /15/17

Product Specifications

Curved LED Display – P4 Technical Specifications

Parameter	P4
Pixel Pitch	4 mm
Resolution	80 × 40
LED Type	SMD1921
HUB	HUB75
Module Size	320 × 160 × 18 mm
Weight	0.49 kg
Brightness	≥5000
Viewing Angle	140/120
Contrast	3000:1
Max Power	879 W/m²
Typical Power	293 W/m²
Voltage	AC 90–264V
Refresh Rate	≥1920Hz
Drive Mode	10 Scan
Processing	12–14 Bit
Video	2K / 4K
Lifetime	50000H
Working Temp	-20~50°C
Storage Temp	-10~30°C

Key Features

Engineered for Installations Where the Display Is the Architecture

✋

Custom Curve Engineering — Any Radius, Any Configuration

There is no standard curve template for a Curved LED Display installation — every project begins with the specific radius required by the space, the content intent, and the viewing geometry. AdrTech India's engineering team develops precise CAD specifications for the panel array and the supporting aluminium structure, accounting for the panel-to-panel angle at each junction along the curve, the load distribution across the mounting system, and the electrical routing through the curved structure. Whether the installation requires a gentle panoramic curve across a 15-metre wall in a Delhi hotel ballroom, a tight concave wrap in a 3-metre broadcast studio virtual set, or a double-S curve in a retail brand experience space in Mumbai, the engineering process is identical: measure, calculate, fabricate, install.

💡

Seamless Curved Surface — No Steps, No Gaps Along the Curve

The technical challenge of a curved LED display is maintaining pixel-perfect alignment and zero visible gap at every panel join along the curve — a challenge that increases as the curve radius tightens and the angular difference between adjacent panels grows. AdrTech India uses precisely machined panel mounting brackets that are calculated and CNC-fabricated to the exact curvature specification, ensuring that each panel is positioned at the correct angle to maintain a seamless, continuous display surface from edge to edge. The result is a curved display where the content flows across the curve without any visible step, gap, or misalignment that would break the immersive effect the installation is designed to create.

🛡️

3840Hz Refresh Rate — Immersive Content That Photographs Perfectly

Curved LED Displays are frequently used in environments where photography and video recording are integral to the purpose of the installation — corporate event backdrops where every speaker is photographed against the display, broadcast studio virtual sets where the display is the set environment visible in every camera shot, and retail brand experiences where social media content creation is a primary visitor behaviour. The 3840Hz+ refresh rate of AdrTech India's Curved LED Display ensures that the display is completely invisible to any camera system — no banding, no flicker, no moiré — making every photograph and video taken in the space a perfect representation of the content on the display.

🔌

Curved Display-Optimized Video Processor — Warping and Geometry Correction

Displaying flat rectangular content on a curved display surface requires geometric correction — the video processor must compensate for the spatial distortion that the curve introduces, so that straight lines in the original content appear straight when viewed on the curved display. AdrTech India's curved display installations include a video processor with hardware-based geometry correction, edge blending, and output warping capability that handles this correction transparently — allowing content creators to produce content in standard rectangular formats and trust the processor to adapt it correctly to the display geometry without visible distortion.

🎨

Custom Structural Engineering — Integrated Into the Architecture

The mounting structure for a Curved LED Display is not a generic bracket system — it is a purpose-engineered aluminium framework fabricated to the exact dimensions and curvature of the installation, designed to integrate with the architectural features of the space, carry the distributed weight of the panel array safely, and provide maintenance access to individual panels without structural disassembly. For installations in structural environments such as hotel ballrooms, corporate lobbies, and broadcast studios in Mumbai, Delhi, and Bengaluru where the display must integrate seamlessly with the ceiling, floor, and wall finishes, AdrTech India coordinates with the project architect and interior designer to ensure the structural and aesthetic integration is achieved as designed.

💼

Front-Access Maintenance — Service Without Structural Disruption

In a curved installation where the display surface is a structural element of the space — integrated into an architectural feature wall, ceiling, or floor-to-ceiling reception backdrop — access to the rear of the display for maintenance may be limited or impossible once the installation is complete. AdrTech India designs all Curved LED Display installations with front-access module replacement as a standard feature, allowing individual failed modules to be replaced from the display face without removing surrounding panels, accessing the rear structure, or disrupting the visual surface in adjacent areas. Maintenance visits can be scheduled during off-peak hours without requiring the space to be closed or refurbished.

Applications

Where Are Curved LED Displays Used in India?

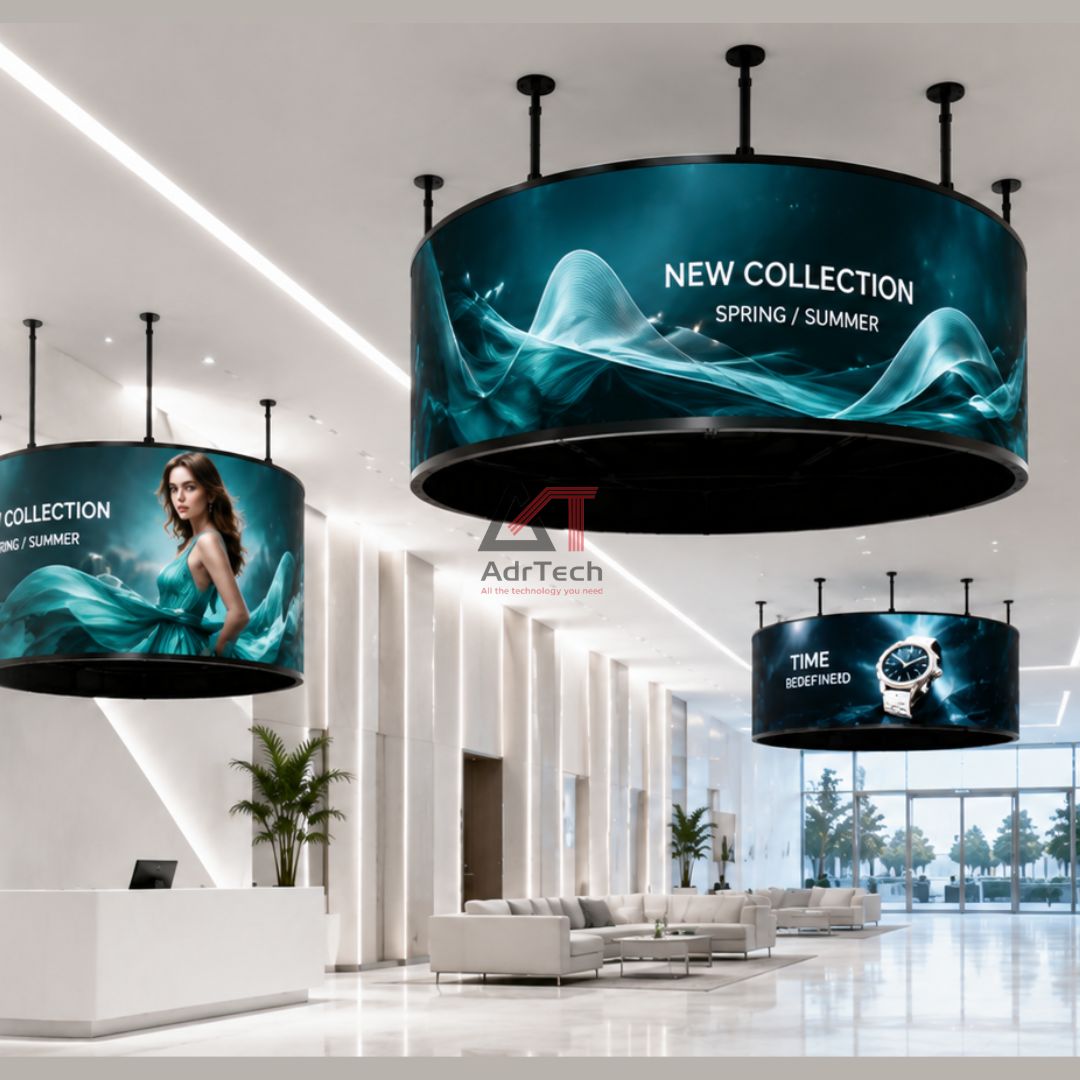

Corporate Headquarters & Premium Lobbies

Flagship corporate headquarters and premium office buildings in Delhi NCR, Mumbai, and Bengaluru install concave Curved LED Displays as centrepiece reception features — a large-radius curve spanning the full width of the reception wall behind the front desk, displaying brand content, corporate achievement highlights, and dynamic ambient visuals that create an immediate impression of scale and technological sophistication for every visitor who enters the building. For technology companies, financial institutions, and professional services firms whose physical headquarters is part of their brand identity, the curved display installation is an architectural investment as much as a communication tool.

Hotel Ballrooms & Luxury Event Venues

Premium hotel brands in Delhi, Mumbai, and Hyderabad install Curved LED Displays as permanent stage backdrop features in their signature ballrooms — creating a versatile, high-impact visual environment that transforms the appearance of the venue for each event it hosts. A concave curved backdrop spanning the full width of the stage creates an immersive visual environment for corporate galas, award ceremonies, and product launches that photographs and films beautifully from any position in the room. The curved geometry eliminates the flat-wall constraint of a standard LED backdrop, wrapping the stage in a visual field that creates genuine depth perception for audiences seated across the room.

Broadcast Studios & Virtual Production Sets

Television production companies, news broadcasters, and corporate broadcast studios in Mumbai, Delhi, and Bengaluru use curved LED displays as virtual production backdrops — replacing physical set construction and green screen compositing with a live LED environment that appears as the actual background in every camera shot without post-production. The 3840Hz refresh rate eliminates the camera compatibility issues that affect lower-quality LED displays in broadcast environments, while the curved geometry creates a deeper, more convincing illusion of environmental depth than a flat LED backdrop of the same width. AdrTech India's broadcast studio curved display installations are designed in collaboration with the production team's camera positions and lens specifications.

Retail Flagship Stores & Brand Experiences

Premium retail brands and luxury products companies in Mumbai, Delhi, and Bengaluru use Curved LED Displays in their flagship stores and pop-up brand experience spaces to create immersive visual environments that differentiate their brand experience from the flat-screen retail environment that competitors occupy. A curved display wrapping around three walls of a product experience room creates a 270-degree visual environment that places the visitor inside the brand's visual world — an experience that drives dwelling time, social media sharing, and brand recall far more effectively than a conventional flat display of equivalent content area.

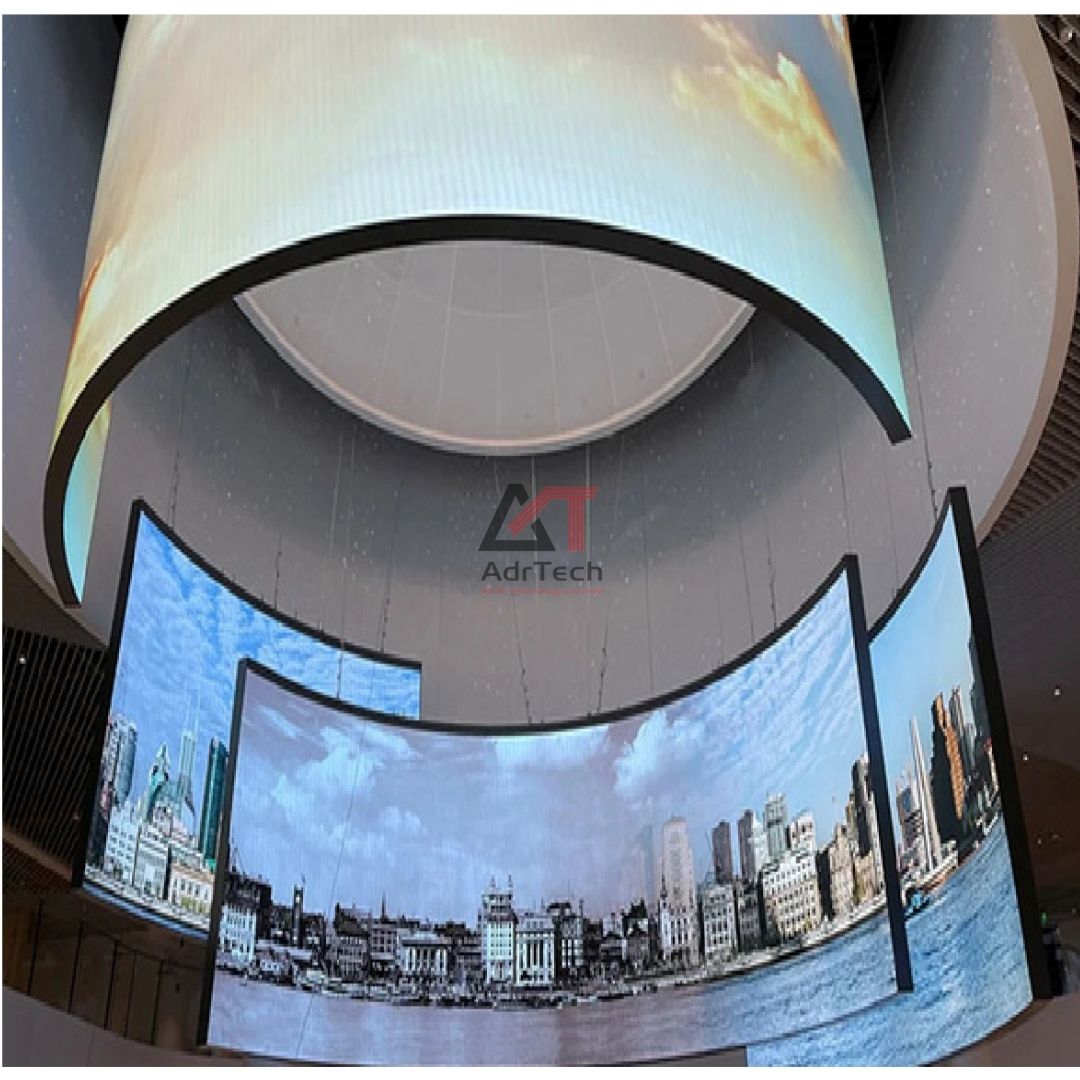

Museum & Exhibition Spaces

Museums, science centres, and major exhibition installations in Delhi, Hyderabad, and Chennai use curved LED displays to create panoramic, immersive exhibition environments — a curved display spanning the full circumference of a cylindrical exhibition room for historical panorama displays, a large concave curved display at the end of a gallery for an immersive narrative installation, or a convex curved display at the centre of a circular exhibition hall for a 360-degree content experience. The display's precise colour reproduction and high resolution ensure that archival photography, scientific visualization, and artistic content are presented with accuracy and impact appropriate to the institutional context.

Entertainment Venues & Themed Attractions

Entertainment complexes, theme parks, and experiential attraction venues in Mumbai, Delhi, and Bengaluru use Curved LED Displays as core elements of immersive themed environments — curved display tunnels that place visitors inside a visual experience as they walk through a space, curved concave domes for planetarium-style environmental projections without the cost and maintenance of physical dome projection systems, and multi-surface curved display installations that create narrative environments for theatrical and experiential entertainment products. The display's 24x7 operational capability and long LED lifespan make it practical for entertainment environments with high daily visitor throughput.

Business Benefits

Why Organizations Choose a Curved LED Display

📈

Creates an Architectural Visual Feature That Defines the Space

A Curved LED Display installation is not furniture — it is an architectural element that becomes part of the permanent identity of the space it occupies. The reception lobby of a corporate headquarters in Bengaluru or Mumbai that features a custom curved LED display is remembered and described by every visitor who experiences it; the hotel ballroom in Delhi that has a curved LED stage backdrop is chosen over competitors for events that value presentation quality. This spatial identity value — the way the display changes the character and reputation of the space permanently — is a benefit that extends far beyond the display's functional communication role.

🤝

Immersive Visual Experience That Flat Displays Cannot Replicate

The fundamental difference between a Curved LED Display and a flat display of equivalent area is the immersive quality of the visual experience it creates. A flat display presents content on a plane — the viewer sees the content, but remains spatially separate from it. A curved display surrounds the viewer's field of vision, creating a spatial relationship with the content that engages peripheral vision, creates depth perception cues, and produces the psychological experience of being inside the visual environment rather than observing it from outside. For retail brand experiences, entertainment attractions, and premium event environments in India's top-tier venues, this immersive quality is the specific outcome that justifies the curved display investment over a flat alternative.

🖨️

Broadcast-Ready Performance Protects Photography and Media Quality

Events held in spaces with Curved LED Display installations are photographed and filmed against the display surface — making the display's camera performance a direct determinant of the quality of all media produced at those events. The 3840Hz refresh rate eliminates banding and flicker in every photographic and video capture, ensuring that corporate event photography, broadcast news segments, social media content, and product launch videos all reflect the display's full visual quality without post-production correction. For corporate venues and hospitality properties in Delhi, Mumbai, and Bengaluru that use event photography in their marketing material, this is a direct brand asset protection benefit.

🌐

Long-Term Value Through Venue Differentiation and Premium Pricing

Hotel ballrooms and event venues in Mumbai and Delhi that install Curved LED Displays report measurable improvements in venue booking rates and achievable event pricing — clients selecting the venue specifically because of the display installation, and willing to pay a venue premium for events where the visual environment is part of the product. Corporate campuses in Bengaluru that install curved displays in their event halls report increased internal event production quality and reduced event venue hire costs as events that previously went to external premium venues are now hosted on-site. The revenue and cost benefits compound over the 10–15 year operational life of a well-maintained LED installation.

🏆

Custom-Engineered to Your Exact Space — No Compromise Fit

Every Curved LED Display installation from AdrTech India is engineered specifically for the space it occupies — the curve radius is calculated for the viewing geometry, the structural frame is fabricated to the room's dimensions, the pixel pitch is specified for the installation's viewing distances, and the video processor is configured for the content types and input sources the installation will use. There is no adaptation of a standard product to fit an unusual space — the product is the unusual space. This custom engineering approach ensures that the installed display achieves the visual and technical performance that the design intent requires, without the compromises that result from forcing a standard product into a non-standard architectural context.

🔧

Full Project Accountability from Design to Post-Warranty Support

A Curved LED Display project involves structural engineering, electrical infrastructure, display hardware, video processing software, and content management — components that span multiple disciplines and, in a multi-vendor scenario, multiple accountability boundaries. AdrTech India delivers the complete project under a single contract: site survey and design, structural fabrication, panel supply and installation, video processor configuration, commissioning and calibration, operator training, and post-installation warranty and AMC support. Single-vendor accountability eliminates the risk of design gaps between structural and electrical scopes, software-hardware incompatibilities, and the finger-pointing that derails complex AV projects when things go wrong.

FAQS

Frequently Asked Questions

What is a Curved LED Display and how is it different from a flat LED display?

A Curved LED Display is an LED display system where the panel array is mounted on a curved structural frame — concave (curving inward toward the viewer for a wrap-around effect), convex (curving outward away from the viewer), or in a compound S-curve configuration. Unlike a flat LED display where all panels are co-planar, a curved display requires precision engineering of the mounting structure to maintain correct panel-to-panel alignment along the curve, and a video processor with geometry correction capability to compensate for the spatial distortion the curve introduces. The visual result is a display that creates immersive depth and peripheral field engagement that flat displays of equivalent width cannot replicate.

What curve radius is possible for a Curved LED Display installation?

The achievable curve radius depends on the LED panel technology used. Flexible LED panel modules — panels built with a pliable substrate that bends under controlled force — can achieve curve radii as tight as R=500mm, suitable for very tight concave configurations such as column wraps, tunnel installations, and tight immersive environments. Rigid curved panel modules, purpose-built with a fixed curve angle, achieve radii from R=1000mm upwards and are preferred for larger-radius installations where panel rigidity contributes to structural stability and long-term dimensional accuracy. AdrTech India’s design team recommends the appropriate panel technology and fabricates the mounting structure to match the specific radius required by your installation.

How long does a Curved LED Display project take from design to commissioning?

A Curved LED Display project timeline depends on the installation size, complexity, and structural requirements. A standard curved backdrop installation of 20–40sqm with a defined radius and prepared structural mounting environment typically takes 8–12 weeks from signed contract to commissioning — including 2–3 weeks for structural frame design and fabrication, 3–4 weeks for panel supply and delivery, and 1–2 weeks for on-site installation and commissioning. Larger or more complex installations involving custom architectural integration, multi-surface configurations, or multiple rooms may take 16–24 weeks. AdrTech India provides a detailed project schedule at the proposal stage.

What is the price of a Curved LED Display installation in India?

Curved LED Display pricing depends on the display area, curve radius, pixel pitch, structural complexity, and video processor specification. Because every installation is custom-engineered, pricing is provided after a site survey and requirements discussion — AdrTech India does not publish catalogue prices for curved display installations. As a general reference, curved LED installations are priced at a premium above equivalent flat LED installations of the same area to reflect the structural engineering, precision fabrication, and video processor configuration that curved geometry requires. Contact AdrTech India via the form on this page to arrange a consultation and preliminary budget discussion.

Can a Curved LED Display be installed in an existing building without major structural work?

In most cases, yes. AdrTech India’s structural engineering team designs the mounting frame to interface with existing wall, ceiling, or floor anchor points in the building — using non-destructive or minimally invasive fixing methods wherever possible. A preliminary structural survey is conducted before the installation design is finalized to confirm the available anchor points, load capacity, and any civil work requirements. For heritage buildings or leased commercial spaces where structural modification is restricted, AdrTech India’s engineering team designs self-supporting frame solutions that achieve the required curvature and structural stability without permanent modification to the building fabric.

What content formats and sources does the Curved LED Display support?

The integrated video processor for a Curved LED Display supports all standard video input formats — HDMI, DVI, DisplayPort, and SDI — allowing content from laptops, media players, broadcast switchers, and video cameras to be displayed on the curved surface with automatic geometry correction. Content can also be played from an integrated media player supporting MP4 video, JPG/PNG images, and scheduled playlist operation. For installations with complex multi-source requirements — a hotel ballroom display that shows event branding, live camera feeds, and sponsor content simultaneously in different zones of the curved surface — the video processor supports multi-zone source management with drag-and-drop layout configuration.

How is maintenance handled for a Curved LED Display installation?

AdrTech India designs all Curved LED Display installations with front-access module replacement capability, allowing individual failed LED modules to be replaced from the display surface face without structural disassembly or access to the rear of the mounting frame. This is critical for curved installations where the rear of the display may be integrated into a wall or architectural feature. Replacement modules are calibrated to match the brightness and colour of adjacent modules before installation, ensuring visual consistency across the display surface. AdrTech India’s AMC programme includes regular calibration checks, pixel mapping inspections, and proactive module replacement for any modules showing early-stage degradation.

What warranty and after-sales support does AdrTech India provide for Curved LED Display installations?

AdrTech India provides a 1-year on-site warranty covering the LED panels, structural mounting frame, video processor, and control system for every Curved LED Display installation. Remote diagnostic support is available within 24 hours, and on-site technical response within 48–72 hours for hardware failures across Delhi NCR, Mumbai, Pune, Bengaluru, Chennai, and Hyderabad. Post-warranty, AdrTech India offers Annual Maintenance Contracts with scheduled preventive maintenance visits, calibration services, priority module replacement, and continued software support — ensuring the curved display installation maintains its visual performance and structural integrity through its full operational life of 10–15 years.
